Semicon-Optronics Channel Corporation

DC12V Input

DC12V Input

DC12V Input

Product ID: HPD006B Series
High Power LED Driver
HPD(High Power LED Driver) series are designed for driving High Power LEDs.
They are constant current drivers, which provide High Power LED with constant current while operating.
Certified Document
Data Sheet Download Now !
See more complete detail

Part No.
Input
Output
Application(Number of LED)
HPD006B-D1-1
DC12V
3~4V/350mA
6 channels, 1W×1pcs/Channel
HPD006B-D1-2
DC12V
6~8V/350mA
6 channels, 1W×2pcs/Channel
HPD006B-D1-3
DC12V
9~11.5V/350mA
6 channels, 1W×3pcs/Channel
HPD006B-D3-1
DC12V
3~4V/700mA
6 channels, 3W×1pcs/Channel
HPD006B-D3-2
DC12V
6~8V/700mA
6 channels, 3W×2pcs/Channel
HPD006B-D3-3
DC12V
9~11.5V/650mA
6 channels, 3W×3pcs/Channel
HPD006B-D5-1
DC12V
6~8V/700mA
6 channels, 5W×1pcs/Channel

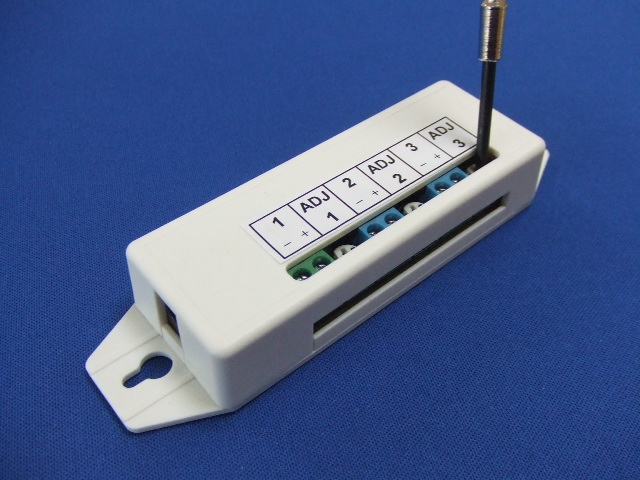

HPD006B3ADJ-D1-3
DC12V
9~11.5V/10~350mA
3 channels, 1W×3pcs/Channel/Current adjustable
HPD006B3ADJ-D3-3
DC12V
9~11.5V/10~700mA
3 channels, 3W×3pcs/Channel/Current adjustable
